All items listed are authentic to the Civil War or as otherwise described.
All artillery items listed have been disarmed.
Any excavated relics have been recovered from private property with owners permission.

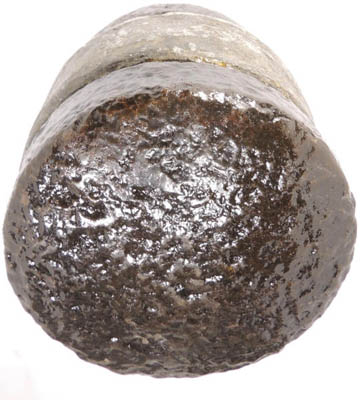

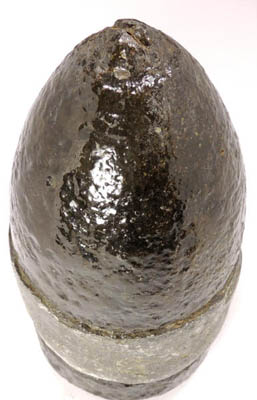

A1833...Rifled artillery projectile, Hotchkiss design, Federal manufacture, bursting shell, pattern without flame grooves, pointed nose "common" (standard), lead band sabot, Hotchkiss iron percussion "West Point" style fuze, James 14 pounder rifle, 3.8in. Projectile was manufactured in the Federal arsenals following the invention of Andrew Hotchkiss. The pattern consisted of three parts, a nose section containing the explosive charge, a cast iron cup fitted on the bottom, and lead band sabot cast around the middle, on firing the cup would compress the lead band sabot expanding it into the rifling. Some of these shells were "common" or standard rounds, explosive charge only, or "case shot", filled with balls. This shell is a "common" shell, (standard), it does not contain balls, and with a percussion fuze it was designed to be used against enemy cannon. The nose section is pointed, containing an open cavity for the explosive charge only, without a separator bolt. Nose section contains a plugged hole centered on the bottom, presumably this hole was used to secure the core on casting, then a plug was installed to seal the bottom. Hotchkiss patent date was cast, not stamped, into the base, "HOTCHKISS PATENT OCTOBER 9, 1855 / MAY 14, 1861 ", and is typically very weak and may have been omitted entirely as the molds wore down or were replaced. Flame grooves were not used on this pattern, with a percussion fuze the flame groove was not needed. Fuze employed was a Hotchkiss iron percussion fuze, "West Point style" which means anvil and slider operated independently, (Jones pg. 92).
Reference: Dickey & George, Field Artillery (1993 Edition), pg. 174.

Projectile measures: diameter 3.7in., length 7.25in. (excluding fuze) unfired sabot, 6.75in. fired sabot compressed, weight 13.2lb. Lead sabot shows faint signs of 15 lands and grooves, fired from James Rifle. Iron percussion fuze intact. Projectile is disarmed, drill hole in the side. Recovered: Vicksburg, Mississippi.
For sale............ $350.
Details click: http://relicman.com/artillery/RelicmanSalesArtillery-A1833.html.
